ORA-AM: Using Autoupgrade for 12c to 19c

AutoUpgrade enables customers to upgrade one or many Oracle databases at the command-line with a single command and a single configuration file. AutoUpgrade will run the preupgrade tasks, perform automated fixups where needed, execute the database upgrade, and finish by taking care of post-upgrade tasks. It includes automatic retry and fallback, the possibility to schedule upgrades for future points in time, and the ability to set, change or remove initialization parameters as desired.

Database can directly be upgraded to 19c from below releases: 11.2.0.3, 11.2.0.4, 12.1.0.1, 12.1.0.2, 12.2.0.1 and 18

Recommended Steps

Step 1: Take full backup of your database with controlfile and spfile. So that if anything goes wrong during upgrade, you can always restore your database.

run {

allocate channel demtest_backup_disk1 type disk format 'C:\temp\full_backup_fidelio/%d_%U';

allocate channel demtest_backup_disk2 type disk format 'C:\temp\full_backup_fidelio/%d_%U';

allocate channel demtest_backup_disk3 type disk format 'C:\temp\full_backup_fidelio/%d_%U';

allocate channel demtest_backup_disk4 type disk format 'C:\temp\full_backup_fidelio/%d_%U';

backup incremental level 0 database;

backup current controlfile;

release channel demtest_backup_disk1;

release channel demtest_backup_disk2;

release channel demtest_backup_disk3;

release channel demtest_backup_disk4;

}

Step 2: Pre-Upgrade actions.

As SYS User, Empty the recycle bin

PURGE DBA_RECYCLEBIN;

Check for INVALID objects in SYS and SYSTEM

col owner format a15
col object_name format a45
col object_type format a15
select owner, object_name, object_type from dba_objects where owner in ('SYS','SYSTEM') and status='INVALID' order by owner,object_type;

Recompile invalids using utlrp.sql

SQL> @$ORACLE_HOME/rdbms/admin/utlrp.sql

Check for duplicate objects in SYS and SYSTEM

SELECT object_name, object_type, subobject_name, object_id
FROM dba_objects
WHERE object_name||object_type in
   (SELECT object_name||object_type
    FROM dba_objects
    WHERE owner = 'SYS')
AND owner = 'SYSTEM'
AND object_name NOT in ('AQ$_SCHEDULES','AQ$_SCHEDULES_PRIMARY','DBMS_REPCAT_AUTH','DBMS_REPCAT_AUTH') ;

Step 3: Gather Dictionary Statistics.

SQL> EXEC DBMS_STATS.GATHER_DICTIONARY_STATS;

Actions to perform

Step 1: Define Environment Variables

Linux Example

export ORACLE_HOME=/u01/app/oracle/product/19.0.0/dbhome_1

export PATH=$PATH:$ORACLE_HOME/jdk/bin

export JAVA_HOME=$ORACLE_HOME/jdk/bin

Step 2: Get the latest autoupgrade.jar java file

Get the latest autoupgrade.jar java file from Doc ID 2485457.1 and place it under under your 19c directory: $ORACLE_HOME/rdbms/admin

Step 3: Check that you have Java 8 or newer
$ORACLE_HOME/jdk/bin/java -version

Step 4: Create the config file

Create a directory to hold all upgrade config and log files.

mkdir C:\temp\19c-autoupg

cd C:\temp\19c-autoupg

Create an autoupgrade Sample Configuration File

D:\oracle\product\12.2.0\dbhome_1\jdk\bin\java -jar D:\oracle\product\19.3.0\dbhome_1\rdbms\admin\autoupgrade.jar -create_sample_file config

$JAVA_HOME/java -jar $ORACLE_HOME/rdbms/admin/autoupgrade.jar -create_sample_file config

Create Config File

notepad C:\temp\19c-autoupg\fidelio_db_config.cfg

Windows Example:

global.autoupg_log_dir=C:\temp\19c-autoupg\

# Database fidelio

upg1.dbname=fidelio

upg1.source_home=D:\oracle\product\12.2.0\dbhome_1

upg1.target_home=D:\oracle\product\19.0.0\dbhome_1

upg1.start_time=NOW

upg1.sid=fidelio

upg1.log_dir=C:\temp\19c-autoupg\

upg1.target_version=19

upg1.upgrade_node=localhost

upg1.run_utlrp=yes

upg1.timezone_upg=yes

## This is required for databases in NOARCHIVELOG mode, to skip restore point creation.

## be aware that this means there will be no fallback plan if the upgrade fails

upg1.restoration=no

Linux Example:

global.autoupg_log_dir=/home/oracle/upgrade_to_19c

# Database fidelio

upg1.dbname=fidelio2

upg1.source_home=/u01/app/oracle/product/12.2.0.1/db_1

upg1.target_home=/u01/app/oracle/product/19.0.0/dbhome_1

upg1.start_time=NOW

upg1.sid=fidelio2

upg1.log_dir=/home/oracle/upgrade_to_19c

upg1.target_version=19

upg1.upgrade_node=localhost

upg1.run_utlrp=yes

upg1.timezone_upg=yes

## This is required for databases in NOARCHIVELOG mode, to skip restore point creation.

## be aware that this means there will be no fallback plan if the upgrade fails

upg1.restoration=no

Step 5 : Copy listener.ora, sqlnet.ora and tnsnames.ora to 19c Folder

Copy D:\oracle\product\12.2.0\dbhome_1\network\admin\*.ora D:\oracle\product\19.3.0\dbhome_1\network\admin

cp /u01/app/oracle/product/12.2.0.1/db_1/network/admin/*.ora $ORACLE_HOME/network/admin

Step 6: Analyze the database

The Four Modes of AutoUpgrade processing described in Oracle Docs (ANALYZE, FIXUP, DEPLOY & UPGRADE).

ANALYZE : This mode perform pre-checks on source database to see if it is ready for upgrade. It will only ANALYZE the source database and will to perform any changes.
FIXUPS : This mode performs the checks that it also performs while in Analyze mode and after completing these checks, AutoUpgrade then performs all automated fixup tasks that are required to fix the earlier release source database before before the upgrade is commenced.
DEPLOY : This mode will perform actual upgrade of the source database. If needed it can also perform fixups on database.
UPGRADE : Upgrade mode enables you to upgrade the target Oracle Home in cases where you do not have access to source Oracle Home.

You can run auto upgrade directly in DEPLOY mode without running ANALYZE and FIXUPS mode. But if you do not want to take chances to see unforseen abortion of upgrade, you better run it in ANALYZE and FIXUPS mode before running it in DEPLOY mode.

Autoupgrade Analyze mode checks your database to see if it is ready for the upgrade. This will reads data from the database and does not perform any updates.

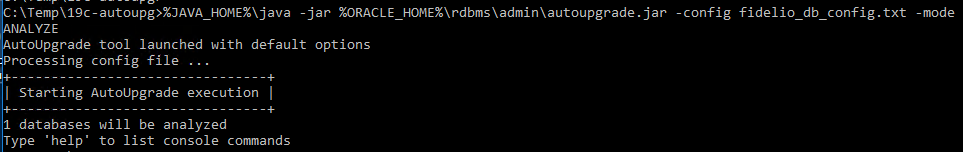

Execute autoupgrade in analyze mode with the below syntax,

Windows Example

%JAVA_HOME%\java -jar %ORACLE_HOME%\rdbms\admin\autoupgrade.jar -config fidelio_db_config.cfg -mode ANALYZE

Linux Example

$JAVA_HOME/java -jar $ORACLE_HOME/rdbms/admin/autoupgrade.jar -config fidelio_db_config.cfg -mode ANALYZE

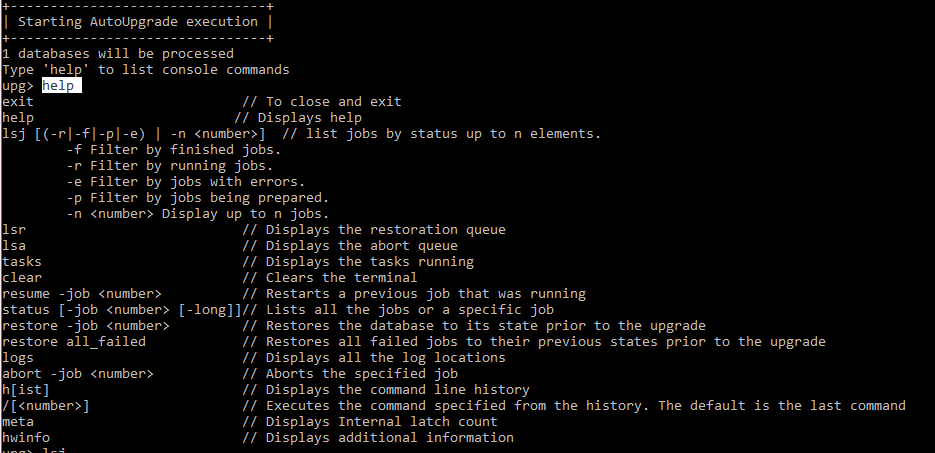

We can monitor, manage and control the jobs from the autoupgrade console. Example:

lsj – to list the jobs

status – to show the job status. Example: status -job 100

tasks – shows the tasks executing

Check Tasks

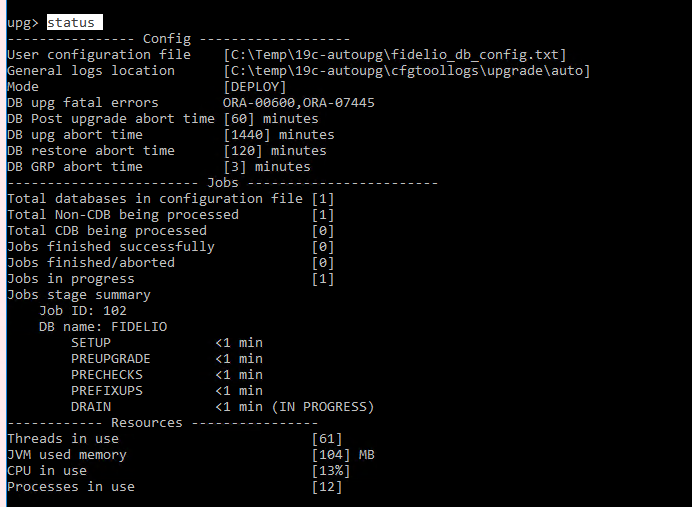

Check Job Status

All Analyze logs are created under autoupg_log_dir

Once the AutoUpgrade finished in ANALYZE mode, you can view an HTML output of script under specified upg1.log_dir which is C:\temp\19c-autoupg in our case.

Location of HTML output file is 100/prechecks/ under above specified directory. Name would be <dbname>_preupgrade.html which is

C:\Temp\19c-autoupg\fidelio\100\prechecks\fidelio_preupgrade.html in our case.

You can also verify the precheck status by looking at specified global.autoupg_log_dir. Under this directory, navigate to cfgtoollogs/upgrade/auto/status under global.autoupg_log if you see <dbname>_prechecks.success, you’re good to proceed with DEPLOY mode.

We can review the html file (fidelio_preupgrade.html) which will list all precheck Errors, warnings and recommendations:

In the report you will see different severity levels: INFO , WARNING , ERROR , RECOMMEND

Of course “ERROR” indicates that you need Fix the issue before attempting to upgrade the database.

Step 7: Start Process

If there are no errors, you can execute the DEPLOY mode, otherwise is better to execute the FIXUPS Mode to make corrections.

So in this example, we didn't have any critical warnings, but we will use the FIXUP Mode for demonstration purposes:

Windows Example

%JAVA_HOME%\java -jar %ORACLE_HOME%\rdbms\admin\autoupgrade.jar -config fidelio_db_config.cfg -mode FIXUPS

Linux Example

$ORACLE_HOME/jdk/bin/java -jar $ORACLE_HOME/rdbms/admin/autoupgrade.jar -config fidelio_db_config.cfg -mode FIXUPS

Once the corrections are made (again, this was not necessary in our example), we can execute the DEPLOY Mode. Autoupgrade Deploy mode performs the actual upgrade of the database from preugrade source database analysis to post-upgrade checks.

Windows Example

%JAVA_HOME%\java -jar %ORACLE_HOME%\rdbms\admin\autoupgrade.jar -config fidelio_db_config.cfg -mode DEPLOY

Linux Example

$JAVA_HOME/java -jar $ORACLE_HOME/rdbms/admin/autoupgrade.jar -config fidelio_db_config.cfg -mode DEPLOY

As soon as you run it in DEPLOY mode, consider reviewing the log under C:\Temp\19c-autoupg\FIDELIO\<job number>\dbupgrade\autoupgrade*fidelio.log

Or even better, use the new tools to monitor:
