ORA-AM: Row Migration and Row Chaining in Oracle

SQL>

SQL> create user sam identified by sam;

User created.

SQL> show parameter db_2k

NAME TYPE VALUE

------------------------------------ ----------- ------------------------------

db_2k_cache_size big integer 0

SQL>

SQL> alter system set db_2k_cache_size=150m;

System altered.

SQL>

SQL> show parameter db_2k

NAME TYPE VALUE

------------------------------------ ----------- ------------------------------

db_2k_cache_size big integer 160M

SQL>

SQL> create tablespace tbs201 datafile '/data01/RNDDB/tbs201.dbf' size 100m blocksize 2k;

Tablespace created.

SQL>

SQL> select tablespace_name, block_size from dba_tablespaces;

TABLESPACE_NAME BLOCK_SIZE

------------------------------ ----------

SYSTEM 8192

SYSAUX 8192

UNDOTBS1 8192

TEMP 8192

TEMP1 8192

USER1 8192

PRIYA 8192

TBS201 2048

8 rows selected.

SQL>

SQL> grant dba to sam;

Grant succeeded.

SQL> conn sam/sam

Connected.

SQL>

SQL> create table sample(id number constraint idpk primary key, name char(2000), address char(2000), fathername char(2000), email char(2000)) tablespace tbs201;

Table created.

SQL>

SQL> select extent_id, blocks from dba_extents where segment_name='SAMPLE' and owner='SAM';

no rows selected

SQL>

SQL> insert into sample (id) values(1);

1 row created.

SQL> commit;

Commit complete.

SQL> select extent_id, blocks from dba_extents where segment_name='SAMPLE' and owner='SAM';

EXTENT_ID BLOCKS

---------- ----------

0 32

SQL> insert into sample (id) values(2);

1 row created.

SQL> select extent_id, blocks from dba_extents where segment_name='SAMPLE' and owner='SAM';

EXTENT_ID BLOCKS

---------- ----------

0 32

SQL> commit;

Commit complete.

SQL> select extent_id, blocks from dba_extents where segment_name='SAMPLE' and owner='SAM';

EXTENT_ID BLOCKS

---------- ----------

0 32

SQL> insert into sample (id) values(3);

1 row created.

SQL> commit;

Commit complete.

SQL> select extent_id, blocks from dba_extents where segment_name='SAMPLE' and owner='SAM';

EXTENT_ID BLOCKS

---------- ----------

0 32

SQL> select id from sample;

----------

SQL>

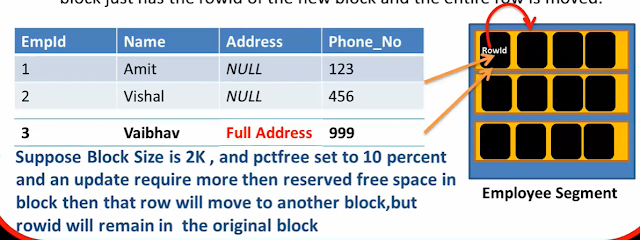

SQL> ================now row migration because of UPDATE statement======

SQL> update sample set name='abc' , address='xyz', email='gmail.com' where id=3;

1 row updated.

SQL> commit;

Commit complete.

SQL> update sample set name='samik';

3 rows updated.

SQL> update sample set name='neel' where id=1;

1 row updated.

SQL>

SQL> select * from sample;

ID ---------- NAME -------------------------------------------------------------------------------- ADDRESS

SQL>

SQL> select rowid from sample;

ROWID

------------------

AAAFrTAAGAAAAIMAAA

AAAFrTAAGAAAAIMAAB

AAAFrTAAGAAAAIMAAC

SQL> select rowid,id from sample;

ROWID ID

------------------ ----------

AAAFrTAAGAAAAIMAAA 1

AAAFrTAAGAAAAIMAAB 2

AAAFrTAAGAAAAIMAAC 3

SQL>

SQL> select rowid, id, dbms_rowid.rowid_block_number(rowid) as block_num from sample;

ROWID ID BLOCK_NUM

------------------ ---------- ----------

AAAFrTAAGAAAAIMAAA 1 524

AAAFrTAAGAAAAIMAAB 2 524

AAAFrTAAGAAAAIMAAC 3 524

SQL>

SQL> ==============how to identify row migration is happening or not=====================

SQL>

SQL> desc v$statname

Name Null? Type

----------------------------------------- -------- ----------------------------

STATISTIC# NUMBER

NAME VARCHAR2(64)

CLASS NUMBER

STAT_ID NUMBER

DISPLAY_NAME VARCHAR2(64)

CON_ID NUMBER

SQL>

SQL> select * from v$statname where name='table fetch continued row'

2 /

STATISTIC# NAME

---------- ----------------------------------------------------------------

CLASS STAT_ID

---------- ----------

DISPLAY_NAME CON_ID

---------------------------------------------------------------- ----------

1017 table fetch continued row

64 1413702393

table fetch continued row 0

SQL> col name for a20

SQL> /

STATISTIC# NAME CLASS STAT_ID

---------- -------------------- ---------- ----------

DISPLAY_NAME CON_ID

---------------------------------------------------------------- ----------

1017 table fetch continue 64 1413702393

d row

table fetch continued row 0

SQL> col DISPLAY_NAME for a25

SQL> /

STATISTIC# NAME CLASS STAT_ID DISPLAY_NAME

---------- -------------------- ---------- ---------- -------------------------

CON_ID

----------

1017 table fetch continue 64 1413702393 table fetch continued row

d row

SQL> set lines 200

SQL> /

STATISTIC# NAME CLASS STAT_ID DISPLAY_NAME CON_ID

---------- -------------------- ---------- ---------- ------------------------- ----------

1017 table fetch continue 64 1413702393 table fetch continued row 0

d row

SQL> col NAME for a45

SQL> /

STATISTIC# NAME CLASS STAT_ID DISPLAY_NAME CON_ID

---------- --------------------------------------------- ---------- ---------- ------------------------- ----------

1017 table fetch continued row 64 1413702393 table fetch continued row 0

SQL>

SQL> desc V$mystat

Name Null? Type

---------------------- --------

SID NUMBER

STATISTIC# NUMBER

VALUE NUMBER

CON_ID NUMBER

SQL>

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 6

SQL>

SQL> select * from sample;

ID NAME

---------- ---------------------------------------------

ADDRESS

---------------------------------------------------------------------------------------------------------

FATHERNAME

---------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------

SQL>

SQL> select count(name) from sample;

COUNT(NAME)

-----------

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 14

SQL>

SQL> =============number of extra blocking are getting read because your row has been migrated;================

SQL>

SQL> select count(address) from sample;

COUNT(ADDRESS)

--------------

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 18

SQL>

SQL> desc sample

Name Null? Type

------------------------------- -------- ----------------------------------------------------------------------------

ID NOT NULL NUMBER

NAME CHAR(2000)

ADDRESS CHAR(2000)

FATHERNAME CHAR(2000)

EMAIL CHAR(2000)

SQL>

SQL> select count(email) from sample;

COUNT(EMAIL)

------------

SQL>

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 24

SQL>

SQL>=================== "We have to stop this row migration and row chaining" =======================

SQL>

SQL> =========Let's check row chaining now =====================================

SQL>

SQL> create table example (id number constraint idpk2 primary key , name char(2000), address char(2000), email char(2000)) tablespace tbs201;

Table created.

SQL>

SQL> insert into example values (1,'abc','xyz','abc@gmail.com');

1 row created.

SQL> commit;

Commit complete.

SQL> select id from exmple;

select id from exmple

ERROR at line 1:

ORA-00942: table or view does not exist

SQL> select id from example;

----------

SQL> ----------Our block is 2k and our records are more than 8k---------------

SQL>

SQL> ----------We have a view from that , we have count the row Chaining------

SQL>

SQL> select table_name, chain_cnt from user_tables where table_name='EXAMPLE';

TABLE_NAME CHAIN_CNT

-------------------------------------------

EXAMPLE

SQL>

SQL> analyze table example compute statistics;

Table analyzed.

SQL> select table_name, chain_cnt from user_tables where table_name='EXAMPLE';

TABLE_NAME CHAIN_CNT

-------------------------------

EXAMPLE 1

SQL>

SQL> col table_name for a20

SQL> /

TABLE_NAME CHAIN_CNT

-------------------- ----------

EXAMPLE 1

SQL>

SQL> ------------ it means that your table has Row Chain -----------------and it showing Chain Count =1 ---

SQL>

SQL> insert into example values (2,'abc','xyz','abc@gmail.com');

1 row created.

SQL> commit;

Commit complete.

SQL> analyze table example compute statistics;

Table analyzed.

SQL> select table_name, chain_cnt from user_tables where table_name='EXAMPLE';

TABLE_NAME CHAIN_CNT

-------------------- ----------

EXAMPLE 2

SQL>

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 28

SQL>

SQL> select * from example;

ID NAME

---------- -----------------------

ADDRESS

----------------------------------

1 abc

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 37

SQL>

SQL> ---------------------------Solution------------------

SQL>

SQL> ------------increase the block size------------------

SQL>

SQL> ------------move the table into that block size-----------

SQL>

SQL> alter table example move pctfree 10 pctused 50 tablespace TBS19;

SQL> alter index idpk2 rebuild;

SQL> analyze table example compute statistics;

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 41

SQL> select * from example;

Again Value is 41, it means that no row migration and row chaining ...

SQL> select name,value from v$statname s inner join v$mystat m on m.STATISTIC#=s.STATISTIC# where s.name='table fetch continued row';

NAME VALUE

--------------------------------------------- ----------

table fetch continued row 41

Now go to cd $ORACLE_HOME/rdbms/admin/

$ORACLE_HOME/rdbms/admin/

utlchain.sql

SQL>@utlchain.sql

Now analyze the table "example" list chained row...

SQL> analyze table example list chained row;
Table anaylzed.

You will get output in the chained_rows table.
