How to Generate Custom Report from OEM 13c Cloud Control?



How to Generate Custom Report from OEM 13c Cloud Control?
Note: Using below method you can Generate any type of Customer Report as per your requirement.

In this scenario I'm generating report for "List all Database Targets and their Versions".
Connect to OEM Console:

Click on Enterprise -> Reports -> Information Publisher Reports

You will get Information Publisher Reports page so click on "Create" tab

In Title field mention your report name Ex. All Database Target details

And select "Use the specified target" and Click on "OK"

You will get below page

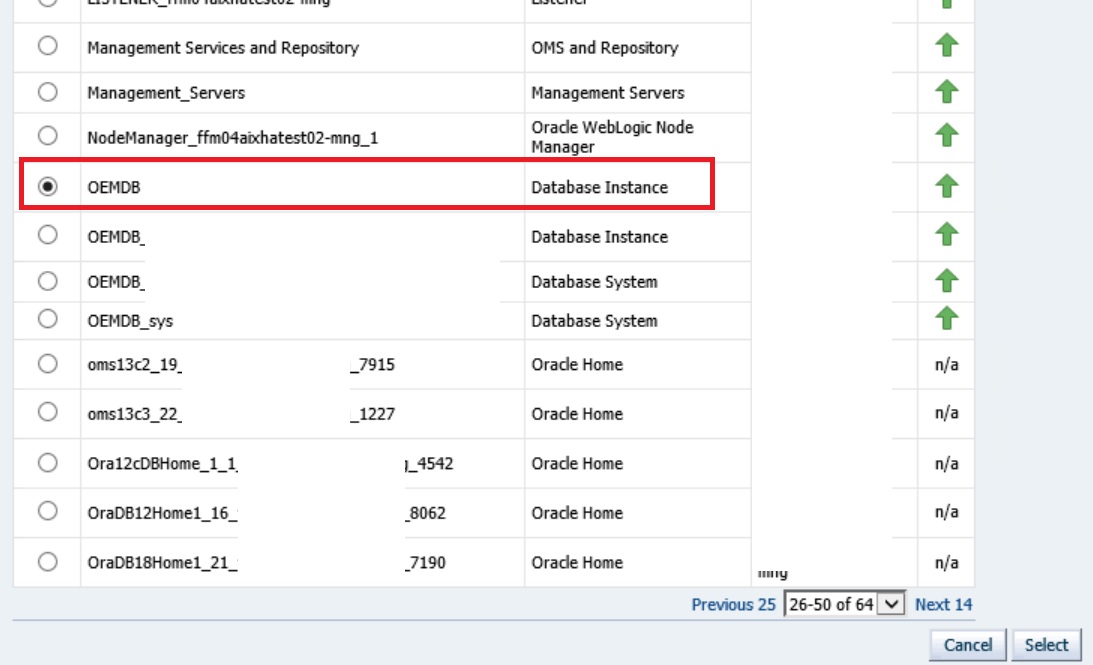

Select any Instance Name ( Here we have selected "OEMDB")

After selecting target name, you will get target name in "Use the specified target"



Now select on checkbox under Privileges

Click on "Elements" tab and also Click on "Add" tab and also Click on "OK"

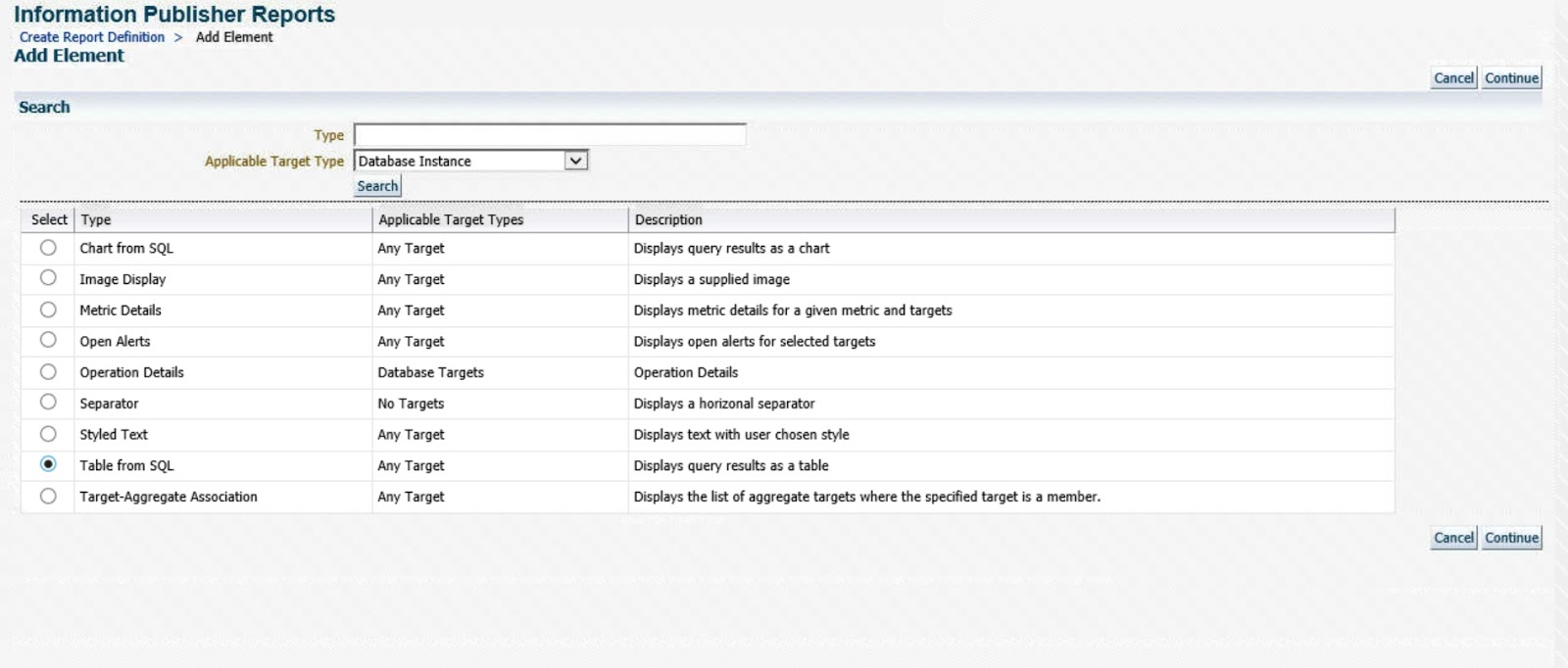

Select "Table from SQL" and click on "Continue"

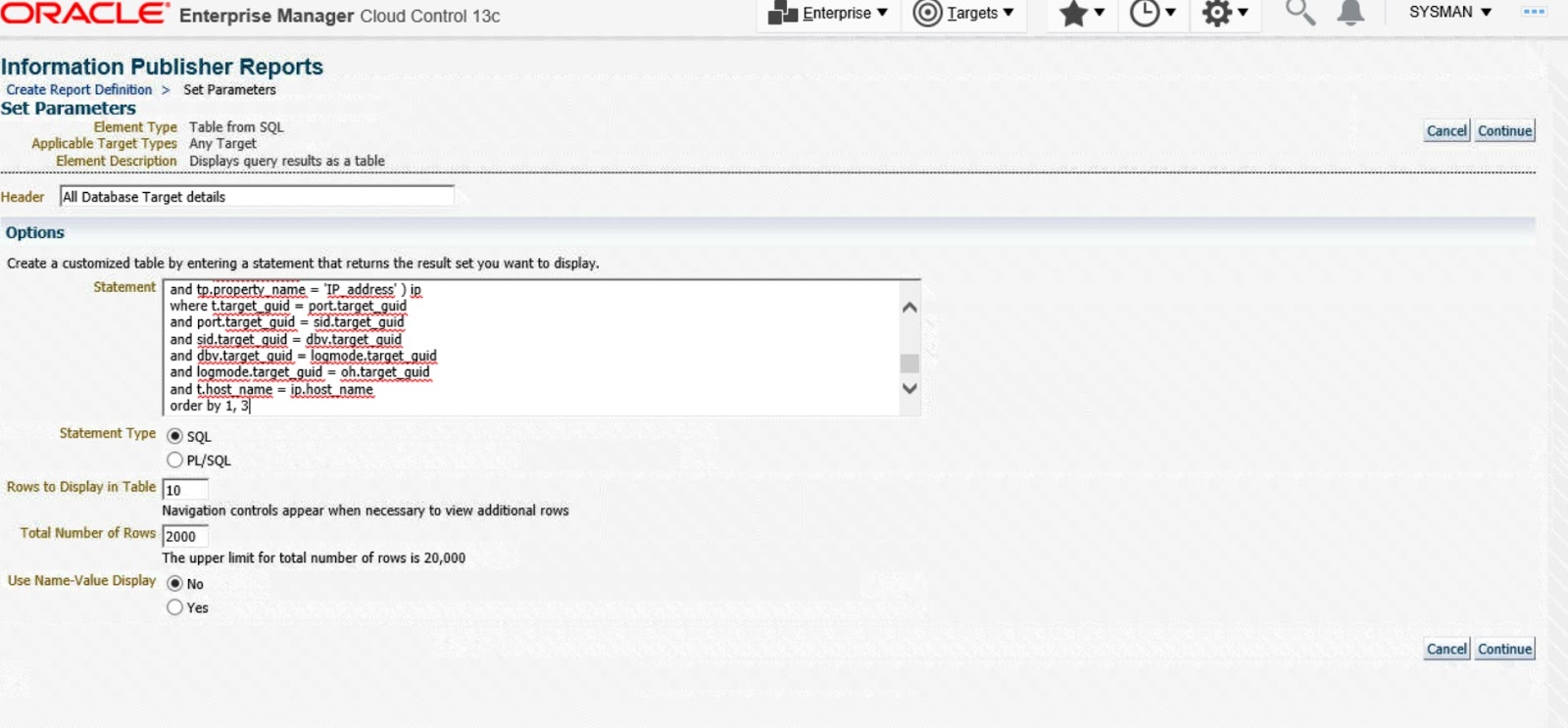

Click on "Set Parameters" icon

Configure your custom query as per your need, then click “Continue”

In my case, I am using the below query "All Database Target details monitored"

select t.host_name
 as     host
 , ip.property_value IP
 , t.target_name
 as     name
 , decode ( t.type_qualifier4
 , ' '
 , 'Normal'
 , t.type_qualifier4 )
 as     type
 , dbv.property_value
 as     version
 , port.property_value port
 , SID.property_value SID
 , logmode.property_value
 as     "Log Mode"
 , oh.property_value
 as     "Oracle Home"
 from mgmt$target t
 , ( select p.target_guid
 , p.property_value
 from mgmt$target_properties p
 where p.property_name = 'DBVersion' ) dbv
 , ( select p.target_guid
 , p.property_value
 from mgmt$target_properties p
 where p.property_name = 'Port' ) port
 , ( select p.target_guid
 , p.property_value
 from mgmt$target_properties p
 where p.property_name = 'SID' ) sid
 , ( select p.target_guid
 , p.property_value
 from mgmt$target_properties p
 where p.property_name = 'log_archive_mode' ) logmode
 , ( select p.target_guid
 , p.property_value
 from mgmt$target_properties p
 where p.property_name = 'OracleHome' ) oh
 , ( select tp.target_name
 as     host_name
 , tp.property_value
 from mgmt$target_properties tp
 where tp.target_type = 'host'
 and tp.property_name = 'IP_address' ) ip
 where t.target_guid = port.target_guid
 and port.target_guid = sid.target_guid
 and sid.target_guid = dbv.target_guid
 and dbv.target_guid = logmode.target_guid
 and logmode.target_guid = oh.target_guid
 and t.host_name = ip.host_name

 order by 1, 3;

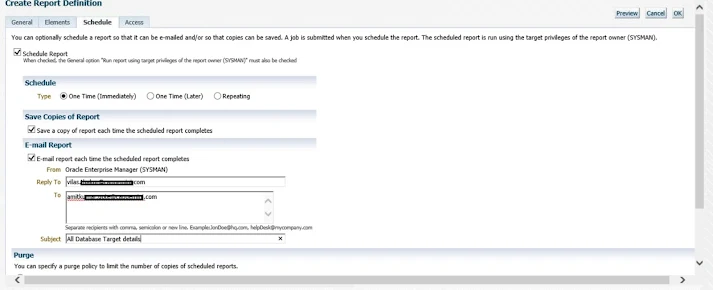

Now, Click on "Schedule" and select check box "Schedule Report" and select "Save Copies of Report" section and also E-mail Report as per your requirement  and Click on "OK"

You will get Confirmation screen as per below

You will get the report on your a mail ID.
