1) If you are running Oracle RAC, then configuring the shared storage is one of the main preinstallation tasks that needs to be done.
2) You need to configure multipathing and make sure that the device name that will be used for ASM is always the same.
3) And you must set permissions and ownership for these devices.
4) On Linux you can use ASMlib for that.
5) It stamps the devices so that it can identify them, provides an unique and consistent name for ASM and sets propper permissions for the devices.
6) But it still possible for other processes to write to these devices, using “dd” for instance.
7) Now there is Oracle Grid Infrastructure 12c which introduces a replacement for ASMlib called ASM Filter Driver (AFD).
8) Basically it does the same things as ASMlib but in addition to that it is able to block write operations from other processes than Oracle’s own ones.
9) So that is a good thing and I wanted to use it for a new cluster that I should set up.
10) And that is where the trouble starts. Beside the fact that there were some bugs in the initial versions of AFD from which most got fixed by the April 2016 PSU, AFD is installed as part of Grid Infrastructure.
11) You can read that in the Automatic Storage Management Docs. It states the following:
After installation of Oracle Grid Infrastructure, you can optionally configure Oracle ASMFD for your system. 😐
12) What? After installation? ???????????????????????????????????????
But I need it right from the beginning to use it for my initial disk group. How about that?
There is a MOS note How to Install ASM Filter Driver in a Linux Environment Without Having Previously Installed ASMLIB (Doc ID 2060259.1) but this Whitepaper also assumes that Grid Infrastructure is already installed.
ASM Filter Driver (or AFD) is a replacement for ASMLib and is described by Oracle as follows:
Oracle ASM Filter Driver (Oracle ASMFD) is a kernel module that resides in the I/O path of the Oracle ASM disks. Oracle ASM uses the filter driver to validate write I/O requests to Oracle ASM disks.
The Oracle ASMFD simplifies the configuration and management of disk devices by eliminating the need to rebind disk devices used with Oracle ASM each time the system is restarted.
The Oracle ASM Filter Driver rejects any I/O requests that are invalid. This action eliminates accidental overwrites of Oracle ASM disks that would cause corruption in the disks and files within the disk group. For example, the Oracle ASM Filter Driver filters out all non-Oracle I/Os which could cause accidental overwrites.Rreal pain as you need to have 12.1.0.2 installed before the AFD is available to label your disks, yet the default OUI mode wants to create an ASM diskgroup… and you cannot do that without any labelled disks.
The only solution I could come up with was to perform a software-only install, which in itself is a pain. I
Real pain as you need to have 12.1.0.2 installed before the AFD is available to label your disks, yet the default OUI mode wants to create an ASM diskgroup and you cannot do that without any labelled disks.
The only solution I could come up with was to perform a software-only install, which in itself is a pain.
What is Oracle ASM Filter Driver (ASMFD)
1. Install Grid Infrastructure Software
First step is to install Grid Infrastructure as a software only installation. That implies that you have to do it on all nodes that should form the future cluster. I did that on the first node, saved the response file and did a silent install on the other nodes.
1. Install Grid Infrastructure Software
First step is to install Grid Infrastructure as a software only installation. That implies that you have to do it on all nodes that should form the future cluster. I did that on the first node, saved the response file and did a silent install on the other nodes.
1 | [oracle@vm140 ~] ./runInstaller -silent -responseFile /home/oracle/stage/grid/grid.rsp -ignorePrereq |
At the end of the installation you need to run the “orainstRoot.sh” script which itself provides two other root scripts which configure either a cluster or a stand alone server:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 | [root@vm140 ~]# /u01/app/oraInventory/orainstRoot.shChanging permissions of /u01/app/oraInventory.Adding read,write permissions for group.Removing read,write,execute permissions for world.Changing groupname of /u01/app/oraInventory to oinstall.The execution of the script is complete.[root@vm140 ~]# /u01/app/12.1.0.2/grid/root.shPerforming root user operation.The following environment variables are set as: ORACLE_OWNER= oracle ORACLE_HOME= /u01/app/12.1.0.2/gridEnter the full pathname of the local bin directory: [/usr/local/bin]: Copying dbhome to /usr/local/bin ... Copying oraenv to /usr/local/bin ... Copying coraenv to /usr/local/bin ...Creating /etc/oratab file...Entries will be added to the /etc/oratab file as needed byDatabase Configuration Assistant when a database is createdFinished running generic part of root script.Now product-specific root actions will be performed.To configure Grid Infrastructure for a Stand-Alone Server run the following command as the root user:/u01/app/12.1.0.2/grid/perl/bin/perl -I/u01/app/12.1.0.2/grid/perl/lib -I/u01/app/12.1.0.2/grid/crs/install /u01/app/12.1.0.2/grid/crs/install/roothas.plTo configure Grid Infrastructure for a Cluster execute the following command as oracle user:/u01/app/12.1.0.2/grid/crs/config/config.shThis command launches the Grid Infrastructure Configuration Wizard. The wizard also supports silent operation, and the parameters can be passed through the response file that is available in the installation media. |
For the moment, we do not run any of these scripts.
2. Patching Grid Infrastructure software
Next step is to patch GI software to get the latest version for AFD. Simply update OPatch on all nodes and use “opatchauto” to patch GI home. You need to specify the ORACLE_HOME path using “-oh” parameter to patch an unconfigured Grid Infrastructure home.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 | [root@vm140 ~]# export ORACLE_HOME=/u01/app/12.1.0.2/grid[root@vm140 ~]# export PATH=$ORACLE_HOME/OPatch:$PATH[root@vm140 ~]# opatch versionOPatch Version: 12.1.0.1.12OPatch succeeded.[root@vm140 ~]# opatchauto apply /home/oracle/stage/22646084 -oh $ORACLE_HOME[...]--------------------------------Summary--------------------------------Patching is completed successfully. Please find the summary as follows:Host:vm140CRS Home:/u01/app/12.1.0.2/gridSummary:==Following patches were SUCCESSFULLY applied:Patch: /home/oracle/stage/22646084/21436941Log: /u01/app/12.1.0.2/grid/cfgtoollogs/opatchauto/core/opatch/opatch2016-06-10_13-54-11PM_1.logPatch: /home/oracle/stage/22646084/22291127Log: /u01/app/12.1.0.2/grid/cfgtoollogs/opatchauto/core/opatch/opatch2016-06-10_13-54-11PM_1.logPatch: /home/oracle/stage/22646084/22502518Log: /u01/app/12.1.0.2/grid/cfgtoollogs/opatchauto/core/opatch/opatch2016-06-10_13-54-11PM_1.logPatch: /home/oracle/stage/22646084/22502555Log: /u01/app/12.1.0.2/grid/cfgtoollogs/opatchauto/core/opatch/opatch2016-06-10_13-54-11PM_1.logOPatchAuto successful. |
You see that with the latest OPatch version there is no need to create an ocm.rsp resopnse file anymore.
3. Configure Restart
Configure Restart? Why? Because it sets up everything we need to use AFD but does not need any shared storage or other cluster related things like virtual IPs, SCANs and so on.
Therefore you use the script that was provided earlier by the “orainstRoot.sh” script. Do that on all nodes of the future cluster.
1 | [root@vm140 ~]# /u01/app/12.1.0.2/grid/perl/bin/perl -I/u01/app/12.1.0.2/grid/perl/lib -I/u01/app/12.1.0.2/grid/crs/install /u01/app/12.1.0.2/grid/crs/install/roothas.pl |
4. Deconfigure Restart
After Restart was configured, you can deconfigure it right away. Everything that is needed for AFD is being kept. The documentation for that is here.
1 2 | [root@vm140 ~]# cd /u01/app/12.1.0.2/grid/crs/install/[root@vm140 install]# ./roothas.sh -deconfig -force |
5. Confiure ASM Filter Driver
Now you can finally start configuring AFD. The whitepaper from the MOS note mentioned at the beginning provides a good overview of what has to be done. Simply connect as “root”, set the environment and run the following:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 | [root@vm140 install]# $ORACLE_HOME/bin/asmcmd afd_configureConnected to an idle instance.AFD-627: AFD distribution files found.AFD-636: Installing requested AFD software.AFD-637: Loading installed AFD drivers.AFD-9321: Creating udev for AFD.AFD-9323: Creating module dependencies - this may take some time.AFD-9154: Loading 'oracleafd.ko' driver.AFD-649: Verifying AFD devices.AFD-9156: Detecting control device '/dev/oracleafd/admin'.AFD-638: AFD installation correctness verified.Modifying resource dependencies - this may take some time.ASMCMD-9524: AFD configuration failed 'ERROR: OHASD start failed'[root@vm140 install]# $ORACLE_HOME/bin/asmcmd afd_stateConnected to an idle instance.ASMCMD-9526: The AFD state is 'LOADED' and filtering is 'DISABLED' on host 'vm140' |
Don’t care about the error and the message that is telling it failed. That is simply because there is no cluster at all at the moment.
As a final configuration step you need to set the discovery string for AFD so that it can find the disks you want to use. This is defined inside “/etc/afd.conf”:
1 2 | [root@vm140 install]# cat /etc/afd.confafd_diskstring='/dev/xvd*' |
The above steps need to be done on all servers of the future cluster.
Now that AFD is configured, you can start labeling your disks. Do this on only one node:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | [root@vm140 install]# $ORACLE_HOME/bin/asmcmd afd_label GI /dev/xvdb1Connected to an idle instance.[root@vm140 install]# $ORACLE_HOME/bin/asmcmd afd_label DATA /dev/xvdc1Connected to an idle instance.[root@vm140 install]# $ORACLE_HOME/bin/asmcmd afd_label FRA /dev/xvdd1Connected to an idle instance.[root@vm140 install]# $ORACLE_HOME/bin/asmcmd afd_lsdskConnected to an idle instance.--------------------------------------------------------------------------------Label Filtering Path================================================================================GI DISABLED /dev/xvdb1DATA DISABLED /dev/xvdc1FRA DISABLED /dev/xvdd1 |
On all the other nodes just do a rescan of the disks:
1 2 3 4 5 6 7 8 9 10 | [root@vm141 install]# $ORACLE_HOME/bin/asmcmd afd_scanConnected to an idle instance.[root@vm141 install]# $ORACLE_HOME/bin/asmcmd afd_lsdskConnected to an idle instance.--------------------------------------------------------------------------------Label Filtering Path================================================================================GI DISABLED /dev/xvdb1DATA DISABLED /dev/xvdc1FRA DISABLED /dev/xvdd1 |
That’s it.
6. Configure cluster with AFD
Finally, you can start configuring your new cluster and use AFD disks right from the beginning. You can now use the Cluster Configuration Assistant that was mentioned by “orainstRoot.sh” to set up your cluster.
1 | [oracle@vm140 ~]$ /u01/app/12.1.0.2/grid/crs/config/config.sh |
Follow the steps and you will see the well-known screens for setting up a cluster. At the point when you define the initial Grid Inftrastructure diskgroup you can now specify the “Discovery String”:
And, voila, you see the previously labeled disks:
And after you run the root scripts on all nodes, you’ll get a running cluster:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 | [root@vm140 bin]# ./crsctl stat res -t--------------------------------------------------------------------------------Name Target State Server State details--------------------------------------------------------------------------------Local Resources--------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr ONLINE ONLINE vm140 STABLE ONLINE ONLINE vm141 STABLE ONLINE ONLINE vm142 STABLE ONLINE ONLINE vm143 STABLEora.GI.dg ONLINE ONLINE vm140 STABLE ONLINE ONLINE vm141 STABLE ONLINE ONLINE vm142 STABLE OFFLINE OFFLINE vm143 STABLEora.LISTENER.lsnr ONLINE ONLINE vm140 STABLE ONLINE ONLINE vm141 STABLE ONLINE ONLINE vm142 STABLE ONLINE ONLINE vm143 STABLEora.net1.network ONLINE ONLINE vm140 STABLE ONLINE ONLINE vm141 STABLE ONLINE ONLINE vm142 STABLE ONLINE ONLINE vm143 STABLEora.ons ONLINE ONLINE vm140 STABLE ONLINE ONLINE vm141 STABLE ONLINE ONLINE vm142 STABLE ONLINE ONLINE vm143 STABLE--------------------------------------------------------------------------------Cluster Resources--------------------------------------------------------------------------------ora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE vm140 STABLEora.MGMTLSNR 1 ONLINE ONLINE vm140 169.254.231.166 192. 168.1.1,STABLEora.asm 1 ONLINE ONLINE vm140 Started,STABLE 2 ONLINE ONLINE vm142 Started,STABLE 3 ONLINE ONLINE vm141 Started,STABLEora.cvu 1 ONLINE ONLINE vm140 STABLEora.mgmtdb 1 ONLINE ONLINE vm140 Open,STABLEora.oc4j 1 ONLINE ONLINE vm140 STABLEora.scan1.vip 1 ONLINE ONLINE vm140 STABLEora.vm140.vip 1 ONLINE ONLINE vm140 STABLEora.vm141.vip 1 ONLINE ONLINE vm141 STABLEora.vm142.vip 1 ONLINE ONLINE vm142 STABLEora.vm143.vip 1 ONLINE ONLINE vm143 STABLE-------------------------------------------------------------------------------- |
And that’s it. Nothing more to do. Beside creating more disk groups and setting up databases. But that is simple compared to what we’ve done till now.
===========================================================
ASM Filter Driver (ASMFD)

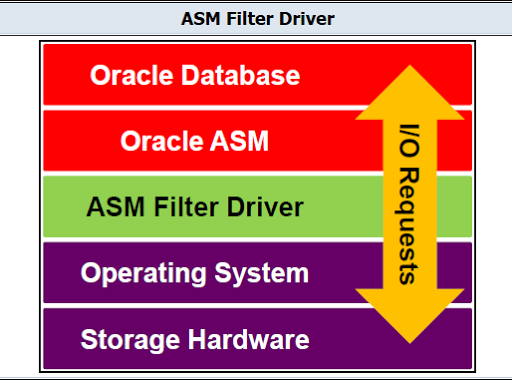

ASM Filter Driver is a Linux kernel module introduced in 12c R1. It resides in the I/O path of the Oracle ASM disks providing the following features:
- Rejecting all non-Oracle I/O write requests to ASM Disks.
- Device name persistency.
- Node level fencing without reboot.
In 12c R2 ASMFD can be enabled from the GUI interface of the Grid Infrastructure installation, as shown on this post GI 12c R2 Installation at the step #8 “Create ASM Disk Group”.
Once ASM Filter Driver is in use, similarly to ASMLib the disks are managed using the ASMFD Label Name.
Here few examples about the implementation of ASM Filter Driver.
--How to create an ASMFD label in SQL*Plus
SQL> Alter system label set 'DATA1' to '/dev/mapper/mpathak';
System altered.
--How to create an ASM Disk Group with ASMFD
CREATE DISKGROUP DATA_DG EXTERNAL REDUNDANCY DISK 'AFD:DATA1' SIZE 30720M
ATTRIBUTE 'SECTOR_SIZE'='512','LOGICAL_SECTOR_SIZE'='512','compatible.asm'='12.2.0.1',
'compatible.rdbms'='12.2.0.1','compatible.advm'='12.2.0.1','au_size'='4M';
Diskgroup created.
ASM Filter Driver can also be managed from the ASM command line utility ASMCMD
--Check ASMFD status ASMCMD> afd_state ASMCMD-9526: The AFD state is 'LOADED' and filtering is 'ENABLED' on host 'oel7node06.localdomain' --List ASM Disks where ASMFD is enabled ASMCMD> afd_lsdsk -------------------------------------------------------------------------------- Label Filtering Path ================================================================================ DATA1 ENABLED /dev/mapper/mpathak DATA2 ENABLED /dev/mapper/mpathan DATA3 ENABLED /dev/mapper/mpathw DATA4 ENABLED /dev/mapper/mpathac GIMR1 ENABLED /dev/mapper/mpatham GIMR2 ENABLED /dev/mapper/mpathaj GIMR3 ENABLED /dev/mapper/mpathal GIMR4 ENABLED /dev/mapper/mpathaf GIMR5 ENABLED /dev/mapper/mpathai RECO3 ENABLED /dev/mapper/mpathy RECO1 ENABLED /dev/mapper/mpathab RECO2 ENABLED /dev/mapper/mpathx ASMCMD> --How to remove an ASMFD label in ASMCMD ASMCMD> afd_unlabel DATA4
Oracle ASM Filter Driver I/O Filtering Test
Check if ASM Filtering is enabled
We need to make sure that ASMFD is loaded and filtering is enabled on the disk we gonna try to corrupt (/dev/sda).
Disk manipulation
As root user, we are going to do disk manipulation on /dev/sda which is an asm disk with filtering enabled.
First, we going to read the first bytes of /dev/sda :
fdisk
mkfs
dd
io redirection
Check ASM Disk
After all theses disks manipulations, let's check /dev/sda disk.
Re-Read header with od
Header still is the same before and after disk manipulations.
Read header with kfed
Kfed can still read the asm disk header.
