Oracle GoldenGate Microservices Architecture has been introduced in Oracle GoldenGate version 12.3.
A kind of architecture mainly designed on the perspective of Cloud operations. So, the older one is now called as Classic Architecture.
As we all aware that, Oracle GoldenGate Classic Extract for Oracle Database is already de-supported from OGG version 18c and now from OGG 21c, Oracle GoldenGate Classic Architecture itself got deprecated and may be de-supported and unavailable in future releases.
So, Oracle recommends the customers to move to Microservices architecture.
On each new release, Oracle has enhanced the Microservices architecture and there are bunch of enhancements in OGG 21c.
In this article, I would be explaining about the Installation and Configuration of Oracle GoldenGate 21c Microservices Architecture.
Part 1:-
—————————–—————————–—————————–
Installation of OGG Microservices
—————————–—————————–—————————–
I have downloaded the binary and unzipped in the below location.
[oracle@rac201 gg_software]$ pwd
/u04/gg_software
[oracle@rac201 gg_software]$
[oracle@rac201 gg_software]$ ls -lrt
total 372396
drwxr-xr-x. 3 oracle oinstall 4096 Jul 29 2021 fbo_ggs_Linux_x64_Oracle_services_shiphome
-rw-r--r--. 1 oracle oinstall 306395 Aug 10 2021 oracle-goldengate-release-notes_21.3.pdf
-rw-r--r--. 1 oracle oinstall 2409 Aug 10 2021 OGG-21.3.0.0-README.txt
-rw-r--r--. 1 oracle oinstall 381014026 Jun 10 18:22 213000_fbo_ggs_Linux_x64_Oracle_services_shiphome.zip
Before installing OGG 21c MA, you need to create three directories which are below,
Why you need the above three directories? What is the need of it?
/u04/app/ogg/ogg21c_ma is OGG_HOME
/u04/app/ogg/ogg21c_sm is Service Manager Home
/u04/app/ogg/ogg21c_deploy is Deployment Home
[oracle@rac201 ogg]$ pwd
/u04/app/ogg
[oracle@rac201 ogg]$ ls -lrt
total 12
drwxrwxr-x. 2 oracle oinstall 4096 Dec 7 14:03 ogg21c_sm
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:03 ogg21c_deploy
drwxrwxr-x. 2 oracle oinstall 4096 Dec 7 14:26 ogg21c_ma
Now, navigate to the directory where binary is stored and run the runInstaller file to start the installation of OGG.
oracle@rac201 Disk1]$
[oracle@rac201 Disk1]$ pwd
/u04/gg_software/fbo_ggs_Linux_x64_Oracle_services_shiphome/Disk1
[oracle@rac201 Disk1]$
[oracle@rac201 Disk1]$ ls -lrt
total 16
drwxr-xr-x. 4 oracle oinstall 4096 Jul 29 2021 install
drwxr-xr-x. 12 oracle oinstall 4096 Jul 29 2021 stage
-rwxr-xr-x. 1 oracle oinstall 918 Jul 29 2021 runInstaller
drwxrwxr-x. 2 oracle oinstall 4096 Jul 29 2021 response

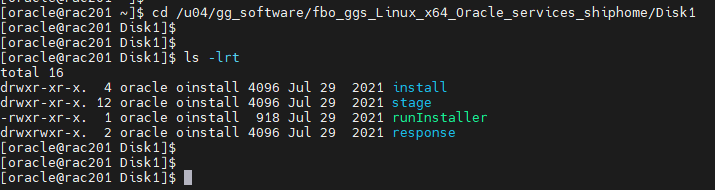

[oracle@rac201 Disk1]$ ./runInstaller
Starting Oracle Universal Installer...
Checking Temp space: must be greater than 120 MB. Actual 72103 MB Passed
Checking swap space: must be greater than 150 MB. Actual 95367 MB Passed
Checking monitor: must be configured to display at least 256 colors. Actual 16777216 Passed
Preparing to launch Oracle Universal Installer from /tmp/OraInstall2024-12-07_02-23-31PM. Please wait ...[oracle@rac201 Disk1]$

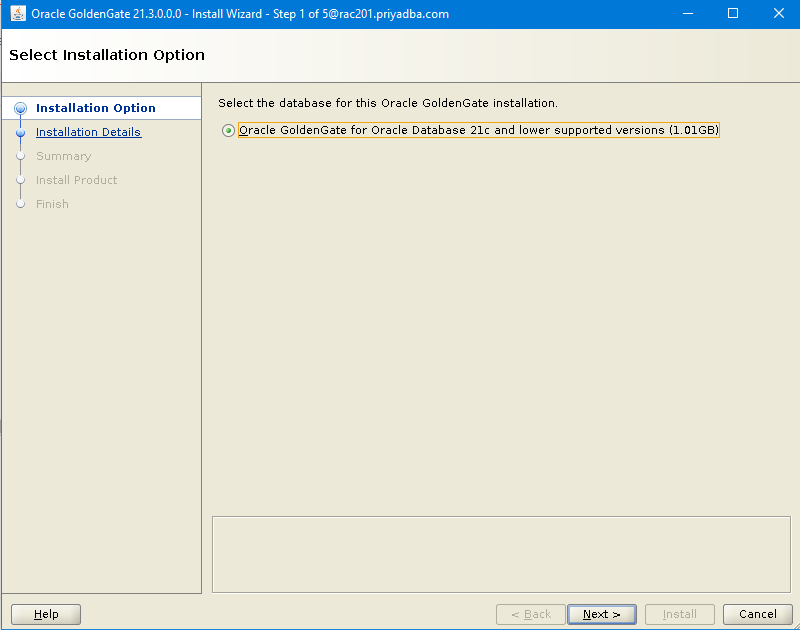

Choose software location.
This is OGG HOME /u04/app/ogg/ogg21c_ma --> is OGG_HOME
When it is successfully Installed, you will see the following
Oracle GoldenGate for Microservices is successfully installed now.
[oracle@rac201 Disk1]$ ./runInstaller
Starting Oracle Universal Installer...
Checking Temp space: must be greater than 120 MB. Actual 72103 MB Passed
Checking swap space: must be greater than 150 MB. Actual 95367 MB Passed
Checking monitor: must be configured to display at least 256 colors. Actual 16777216 Passed
Preparing to launch Oracle Universal Installer from /tmp/OraInstall2024-12-07_02-23-31PM. Please wait ...[oracle@rac201 Disk1]$ You can find the log of this install session at:
/u01/app/oracle/oraInventory/logs/installActions2024-12-07_02-23-31PM.log
[oracle@rac201 Disk1]$
[oracle@rac201 Disk1]$
[oracle@rac201 Disk1]$ cat /u01/app/oracle/oraInventory/logs/installActions2024-12-07_02-23-31PM.log
Using paramFile: /u04/gg_software/fbo_ggs_Linux_x64_Oracle_services_shiphome/Disk1/install/oraparam.ini
Checking Temp space: must be greater than 120 MB. Actual 72103 MB Passed
Checking swap space: must be greater than 150 MB. Actual 95367 MB Passed
Checking monitor: must be configured to display at least 256 colors. Actual 16777216 Passed
The commandline for bootstrap:
/tmp/OraInstall2024-12-07_02-23-31PM/jdk//bin/java -d64 -mx150m -jar /u04/gg_software/fbo_ggs_Linux_x64_Oracle_services_shiphome/Disk1/install/..//stage/bootstrap/bootstrap.jar ../stage/Components/oracle.jdk/1.8.0.291.09/1/DataFiles /tmp/OraInstall2024-12-07_02-23-31PM
Using the umask value '022' available from oraparam.ini
INFO: Oracle Universal Installer Version 11.2.0.3.0
Execvp of the child jre : the cmdline is /tmp/OraInstall2024-12-07_02-23-31PM/jdk/jre/bin/java, and the argv is
/tmp/OraInstall2024-12-07_02-23-31PM/jdk/jre/bin/java
-Doracle.installer.library_loc=/tmp/OraInstall2024-12-07_02-23-31PM/oui/lib/linux64
-Doracle.installer.oui_loc=/tmp/OraInstall2024-12-07_02-23-31PM/oui
-Doracle.installer.bootstrap=TRUE
-Doracle.installer.startup_location=/u04/gg_software/fbo_ggs_Linux_x64_Oracle_services_shiphome/Disk1/install
-Doracle.installer.jre_loc=/tmp/OraInstall2024-12-07_02-23-31PM/jdk/jre
-Doracle.installer.nlsEnabled="TRUE"
-Doracle.installer.prereqConfigLoc=
-Doracle.installer.unixVersion=4.18.0-477.10.1.el8_8.x86_64
-d64
-mx150m
If you want to see the logs for the installation, you can get it from below location,
[oracle@rac201 ogg21c_ma]$ pwd
/u04/app/ogg/ogg21c_ma
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$ ls -lrt
total 56
-rw-r-----. 1 oracle oinstall 63 Sep 1 13:16 oraInst.loc
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:30 diagnostics
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:30 srvm
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 deinstall
drwxr-xr-x. 8 oracle oinstall 4096 Dec 7 14:30 lib
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 jlib
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 include
drwxr-xr-x. 7 oracle oinstall 4096 Dec 7 14:30 jdk
drwxr-xr-x. 13 oracle oinstall 4096 Dec 7 14:30 OPatch
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 bin
drwxr-xr-x. 8 oracle oinstall 4096 Dec 7 14:30 oui
drwxr-x---. 13 oracle oinstall 4096 Dec 7 14:30 inventory
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:30 install
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:32 cfgtoollogs
[oracle@rac201 ogg21c_ma]$ cd bin
[oracle@rac201 bin]$ ls -lrt
total 113596
-rwxrwxr-x. 1 oracle oinstall 6809 Oct 18 2018 XAGTask
-rwxr-x---. 1 oracle oinstall 10362 Dec 16 2020 oggca.sh
-rwxrwxr-x. 1 oracle oinstall 4369 Jul 28 2021 orapki
-rwxrwx---. 1 oracle oinstall 12413968 Jul 29 2021 distsrvr
-rwxrwxr-x. 1 oracle oinstall 8483888 Jul 29 2021 ServiceManager
-rwxrwxr-x. 1 oracle oinstall 1690360 Jul 29 2021 retrace
-rwxrwxr-x. 1 oracle oinstall 1694456 Jul 29 2021 oggerr
-rwxrwxr-x. 1 oracle oinstall 5568576 Jul 29 2021 logdump
-rwxrwxr-x. 1 oracle oinstall 1645280 Jul 29 2021 cachefiledump
-rwxrwxr-x. 1 oracle oinstall 11692320 Jul 29 2021 adminsrvr
-rwxrwxr-x. 1 oracle oinstall 5111424 Jul 29 2021 adminclient
-rwxrwx---. 1 oracle oinstall 11236912 Jul 29 2021 replicat
-rwxrwxr-x. 1 oracle oinstall 8977080 Jul 29 2021 pmsrvr
-rwxrwxr-x. 1 oracle oinstall 5676840 Jul 29 2021 defgen
-rwxrwxr-x. 1 oracle oinstall 1903992 Jul 29 2021 convchk
-rwxrwxr-x. 1 oracle oinstall 5013192 Jul 29 2021 ggcmd
-rwxrwx---. 1 oracle oinstall 11182752 Jul 29 2021 extract
-rwxrwxr-x. 1 oracle oinstall 4976136 Jul 29 2021 emsclnt
-rwxrwxr-x. 1 oracle oinstall 3075192 Jul 29 2021 convprm
-rwxrwxr-x. 1 oracle oinstall 2325248 Jul 29 2021 checkprm
-rwxrwxr-x. 1 oracle oinstall 3185008 Jul 29 2021 certstore
-rwxrwx---. 1 oracle oinstall 10299008 Jul 29 2021 recvsrvr
-rwxrwxr-x. 1 oracle oinstall 112920 Jul 29 2021 keygen
Part 2:-
—————————–—————————–—————————–
Deploying OGG Microservices
—————————–—————————–—————————–

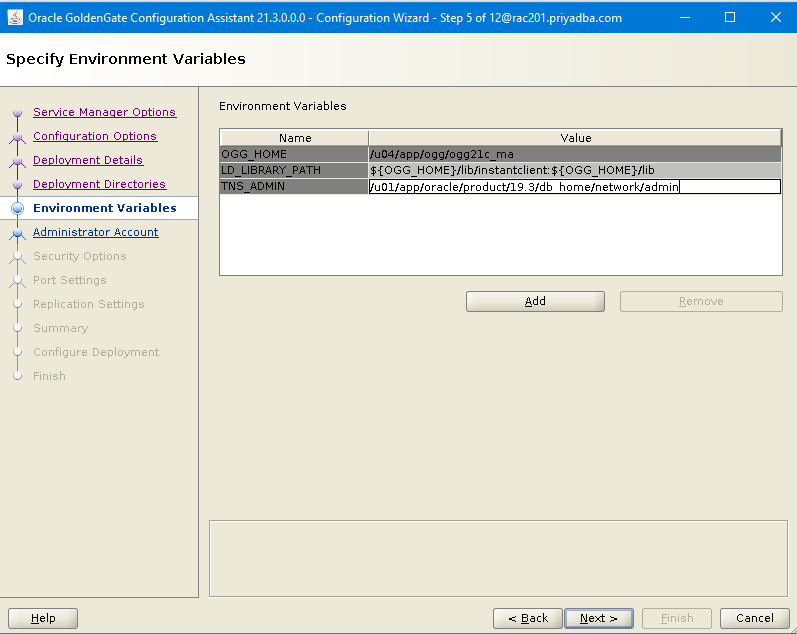

Setting the Environment Variables
export ORACLE_SID=orcl
export ORACLE_BASE=/u01/app/oracle/oracle_base
export ORACLE_HOME=/u01/app/oracle/product/19.3/db_home
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:$LD_LIBRARY_PATH
export TNSADMIN=$ORACLE_HOME/network/admin
export OGG_HOME=/u04/app/ogg/ogg21c_ma
Under the bin directory, we need to run the oggca.sh which takes us to the Deployment screen.
[oracle@rac201 ~]$ cd $OGG_HOME
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$ pwd
/u04/app/ogg/ogg21c_ma
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$ ls -lrt
total 56
-rw-r-----. 1 oracle oinstall 63 Sep 1 13:16 oraInst.loc
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:30 diagnostics
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:30 srvm
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 deinstall
drwxr-xr-x. 8 oracle oinstall 4096 Dec 7 14:30 lib
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 jlib
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 include
drwxr-xr-x. 7 oracle oinstall 4096 Dec 7 14:30 jdk
drwxr-xr-x. 13 oracle oinstall 4096 Dec 7 14:30 OPatch
drwxr-xr-x. 2 oracle oinstall 4096 Dec 7 14:30 bin
drwxr-xr-x. 8 oracle oinstall 4096 Dec 7 14:30 oui
drwxr-x---. 13 oracle oinstall 4096 Dec 7 14:30 inventory
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:30 install
drwxr-xr-x. 3 oracle oinstall 4096 Dec 7 14:32 cfgtoollogs
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$
[oracle@rac201 ogg21c_ma]$ cd bin
[oracle@rac201 bin]$
[oracle@rac201 bin]$ ls -lrt
total 113596
-rwxrwxr-x. 1 oracle oinstall 6809 Oct 18 2018 XAGTask
-rwxr-x---. 1 oracle oinstall 10362 Dec 16 2020 oggca.sh
-rwxrwxr-x. 1 oracle oinstall 4369 Jul 28 2021 orapki
-rwxrwx---. 1 oracle oinstall 12413968 Jul 29 2021 distsrvr
-rwxrwxr-x. 1 oracle oinstall 8483888 Jul 29 2021 ServiceManager
-rwxrwxr-x. 1 oracle oinstall 1690360 Jul 29 2021 retrace
-rwxrwxr-x. 1 oracle oinstall 1694456 Jul 29 2021 oggerr
-rwxrwxr-x. 1 oracle oinstall 5568576 Jul 29 2021 logdump
-rwxrwxr-x. 1 oracle oinstall 1645280 Jul 29 2021 cachefiledump
-rwxrwxr-x. 1 oracle oinstall 11692320 Jul 29 2021 adminsrvr
-rwxrwxr-x. 1 oracle oinstall 5111424 Jul 29 2021 adminclient
-rwxrwx---. 1 oracle oinstall 11236912 Jul 29 2021 replicat
-rwxrwxr-x. 1 oracle oinstall 8977080 Jul 29 2021 pmsrvr
-rwxrwxr-x. 1 oracle oinstall 5676840 Jul 29 2021 defgen
-rwxrwxr-x. 1 oracle oinstall 1903992 Jul 29 2021 convchk
-rwxrwxr-x. 1 oracle oinstall 5013192 Jul 29 2021 ggcmd
-rwxrwx---. 1 oracle oinstall 11182752 Jul 29 2021 extract
-rwxrwxr-x. 1 oracle oinstall 4976136 Jul 29 2021 emsclnt
-rwxrwxr-x. 1 oracle oinstall 3075192 Jul 29 2021 convprm
-rwxrwxr-x. 1 oracle oinstall 2325248 Jul 29 2021 checkprm
-rwxrwxr-x. 1 oracle oinstall 3185008 Jul 29 2021 certstore
-rwxrwx---. 1 oracle oinstall 10299008 Jul 29 2021 recvsrvr
-rwxrwxr-x. 1 oracle oinstall 112920 Jul 29 2021 keygen
[oracle@rac201 bin]$
[oracle@rac201 bin]$
[oracle@rac201 bin]$ ./oggca.sh

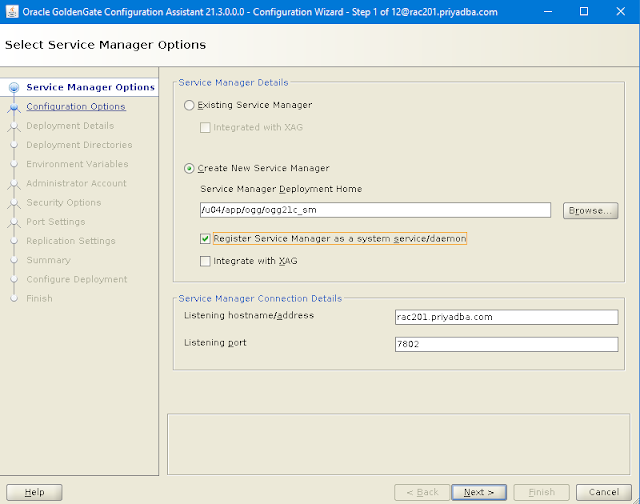

Configure Service Manager.
The location of Service Manager is /u04/app/ogg/ogg21c_sm
If you want to register as a service check the box Register Service Manager as a system service/daemon

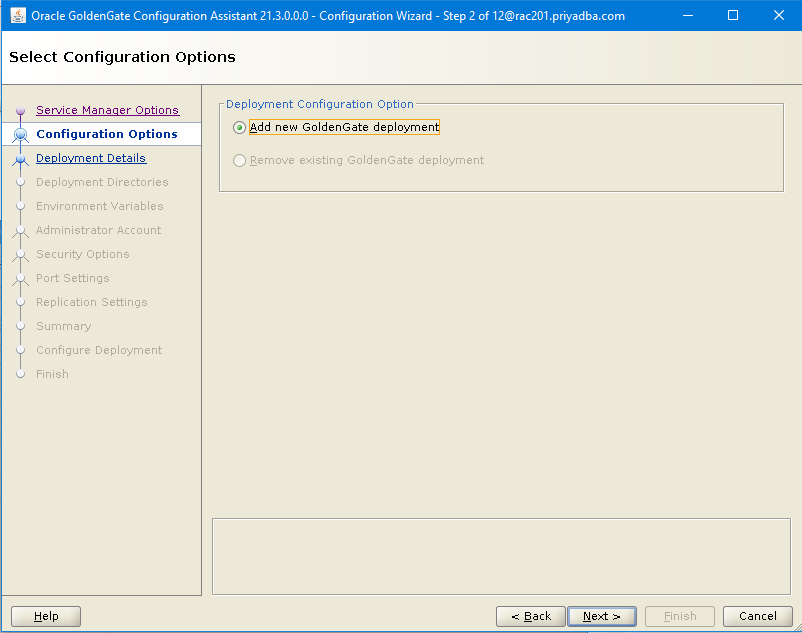

Click on Add new deployment
Give a name to deployment and software home will be OGG HOME.
In this screen, Provide the Deployment Home.
In our case it is /u04/app/ogg/ogg21c_deploy
By default, SSL is enabled.
This is to create a secured deployment.
Uncheck the boxes to create unsecured deployment.
But, if you are going to replicat data from this unsecured deployment to a secured deployment, then you need to check the second check box.
All three cases are shown below, you can select it accordingly.
As we are going with Unsecured deployment, we have unchecked all.
Choose the administration server port.
If you click on Distribution port, the rest will be automatically set.
also click on Enable Monitoring
Save the response file, if required.
Review the summary once before clicking the finish button.

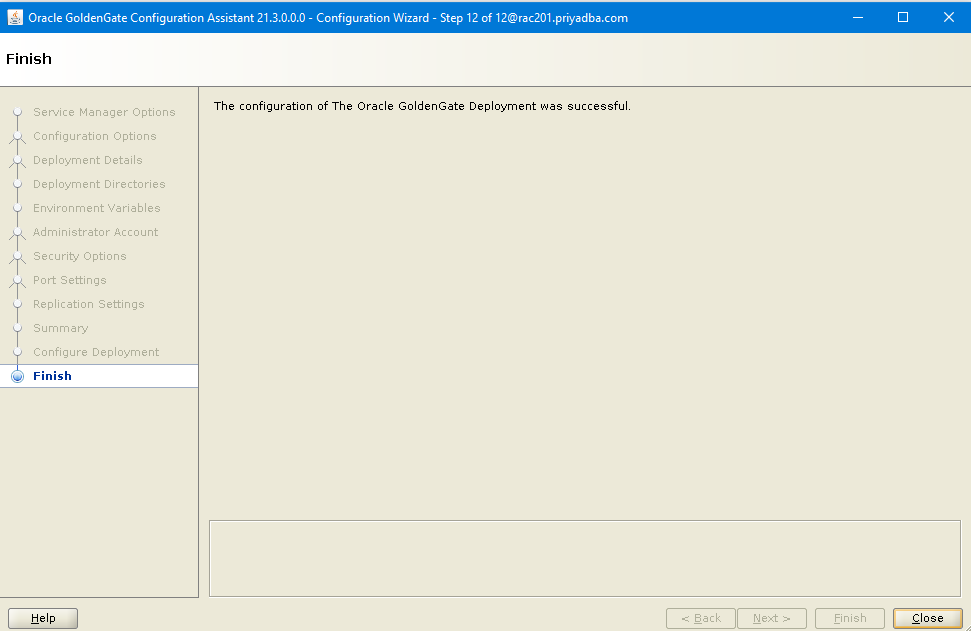

Once you click on the finish button, the deployment creation starts and at the end, it will ask us to run the servicemanager.sh script as root.
[root@rac201 ~]#
[root@rac201 ~]# /u04/app/ogg/ogg21c_sm/bin/registerServiceManager.sh
Copyright (c) 2017, 2020, Oracle and/or its affiliates. All rights reserved.
----------------------------------------------------
Oracle GoldenGate Install As Service Script
----------------------------------------------------
OGG_HOME=/u04/app/ogg/ogg21c_ma
OGG_CONF_HOME=/u04/app/ogg/ogg21c_sm/etc/conf
OGG_VAR_HOME=/u04/app/ogg/ogg21c_sm/var
OGG_USER=oracle
Running OracleGoldenGateInstall.sh...
Created symlink /etc/systemd/system/multi-user.target.wants/OracleGoldenGate.service → /etc/systemd/system/OracleGoldenGate.service.
[root@rac201 ~]#
[root@rac201 ~]# ps -ef | grep ServiceManager
oracle 6935 1 0 18:05 ? 00:00:00 /u04/app/ogg/ogg21c_ma/bin/ServiceManager --inventory '/u04/app/ogg/ogg21c_sm/etc/conf'
root 7160 2976 0 18:08 pts/0 00:00:00 grep --color=auto ServiceManager
[root@rac201 ~]#
[root@rac201 ~]#
[root@rac201 ~]#
Check if other services are running.
oracle@rac201 ~]$ ps -ef | grep /u04/app/ogg/ogg21c_ma
oracle 6720 1 0 18:02 ? 00:00:01 /u04/app/ogg/ogg21c_ma/bin/adminsrvr --config /u04/app/ogg/ogg21c_sm/var/temp/Deployment1-adminsrvr-config.dat --force --quiet
oracle 6722 1 0 18:02 ? 00:00:00 /u04/app/ogg/ogg21c_ma/bin/distsrvr --config /u04/app/ogg/ogg21c_sm/var/temp/Deployment1-distsrvr-config.dat --force --quiet
oracle 6724 1 0 18:02 ? 00:00:01 /u04/app/ogg/ogg21c_ma/bin/recvsrvr --config /u04/app/ogg/ogg21c_sm/var/temp/Deployment1-recvsrvr-config.dat --force --quiet
oracle 6726 1 1 18:02 ? 00:00:06 /u04/app/ogg/ogg21c_ma/bin/pmsrvr --config /u04/app/ogg/ogg21c_sm/var/temp/Deployment1-pmsrvr-config.dat --force --quiet
oracle 6935 1 0 18:05 ? 00:00:00 /u04/app/ogg/ogg21c_ma/bin/ServiceManager --inventory '/u04/app/ogg/ogg21c_sm/etc/conf'
oracle 7189 3024 0 18:10 pts/1 00:00:00 grep --color=auto /u04/app/ogg/ogg21c_ma
Login to the Service Manager GUI.
URL :- rac201.priyadba.com:7802/?root=account
192.168.0.201:7802/?root=account
Provide the username and password.

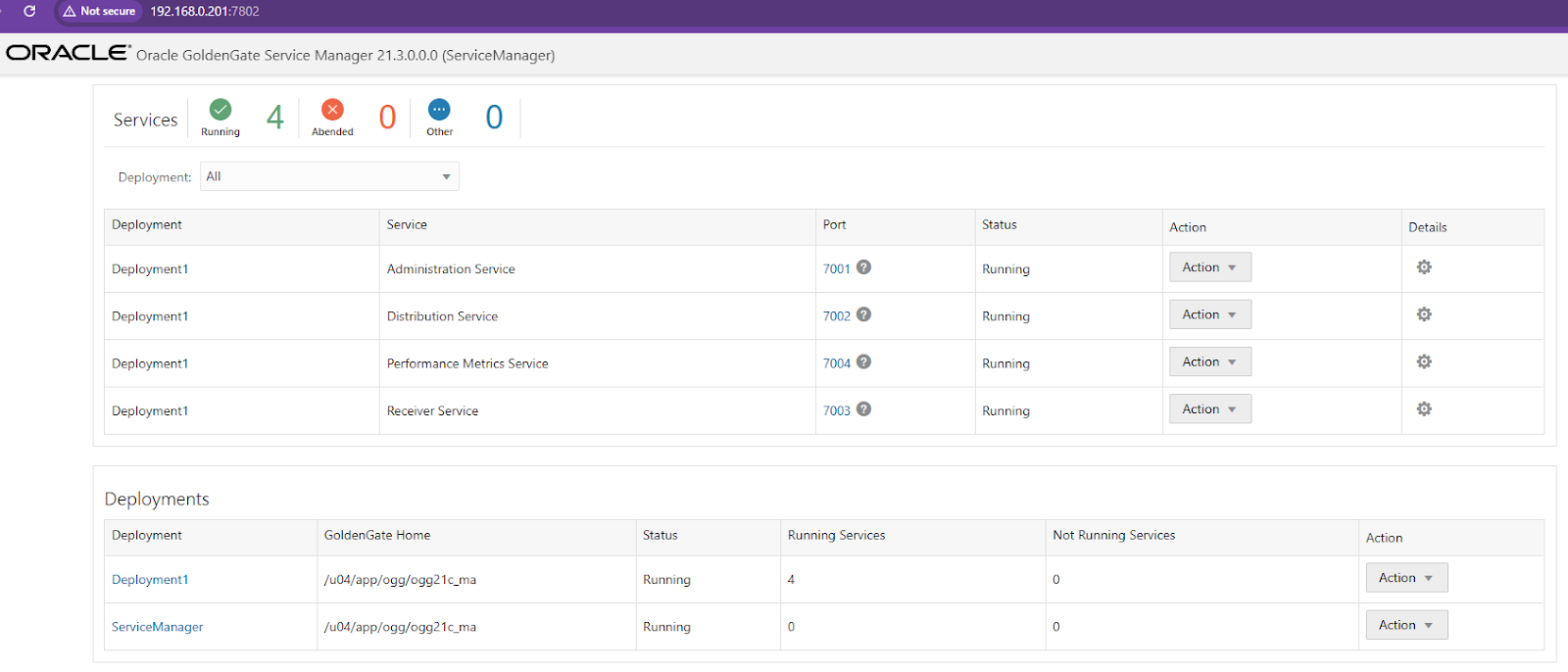

Once you login to the Service Manager, you can see the other services running.
Where the data needs to be replicated? To which Target.
Receiver Service – Configuration for receiving the data from Distribution Service.
Performance Metric Service is a real time monitoring of all OGG processes configured.
Happy Learning 🙂
No comments:
Post a Comment
