Administrator Managed Database : In Administrator Managed database , a DBA manages each instance of the database by defining specific instances to run on specific nodes in the cluster.It is traditional way of cluster management.
Policy Managed Database : It’s a new method to manage clustered database.It is introduced to help implement dynamic grid configurations. In Policy Managed database , DBA is required only to define the cardinality(number of database required). Oracle Clusterware manages the allocation of nodes to run the instances and Oracle RAC allocates the required redo threads and undo tablespaces as needed.
Services For Administrator Managed and Policy Managed Database:
We can define services for both policy managed and admin managed database.Services for a policy-managed database are defined to a server pool where the database is running.
Service for Policy managed database are defined as UNIFORM and SINGLETON.
UNIFORM : Running on all instances in the server pool
SINGLETON : Running on only one instance in the server pool.For singleton services, RAC chooses on which instance in the server pool the service is active. If that instance fails, then the service fails over to another instance in the pool. A service can only run in one server pool.
For Admin Managed Database :
When you define a service for an administrator managed database, you define which instances support that service. These are known as the PREFERRED instances. You can also define other instances to support a service if the service’s preferred instance fails. These are known as AVAILABLE instances.
Dynamic Services
Dynamic database services enable you define characteristics and rules for users and applications in an Oracle RAC database. Oracle recommends that you create database services, which are an automatic workload management facility, to take advantage of various workload-balancing and failover options, as well as that you configure high availability.
A database service is a named representation of a single database instance or a set of instances. You can use services to group database workloads and ensure that client requests are serviced by the optimal instance(s). Services also help provide high availability by failing over client connections to surviving instances when one of the instances crashes or is otherwise unavailable.
Oracle Database Quality of Service (QoS) Management is a policy-based product that helps monitor and manage the Oracle RAC workload. QoS enables you to automatically adjust resources such as server pools.
QoS Management automatically adjusts the configuration to keep applications running at peak performance levels. It also automatically adjusts to any changes in the system configuration and demand, thus helping smooth out application performance.
You can manage QoS through the Oracle QoS Management page in the Oracle Enterprise Manager Cloud Control.
Oracle RAC and Policy Managed Databases
Why Policy Managed Databases?
PMDs are an efficient way to manage and consolidate several databases and services with the least effort. They rely on Server Pools. Server pools are used to partition physically a big cluster into smaller groups of servers (Server Pool). Each pool have three main properties:
- A minumim number of servers required to compose the group
- A maximum number of servers
- A priority that make a server pool more important than others
If the cluster loses a server, the following rules apply:
- If a pool has less than min servers, a server is moved from a pool that has more than min servers, starting with the one with lowest priority.
- If a pool has less than min servers and no other pools have more than min servers, the server is moved from the server with the lowest priority.
- Poolss with higher priority may give servers to pools with lower priority if the min server property is honored.
This means that if a serverpool has the greatest priority, all other server pools can be reduced to satisfy the number of min servers.
Generally speaking, when creating a policy managed database (can be existent off course!) it is assigned to a server pool rather than a single server. The pool is seen as an abstract resource where you can put workload on.
If you read the definition of Cloud Computing given by the NIST (http://csrc.nist.gov/publications/nistpubs/800-145/SP800-145.pdf) you’ll find something similar:
Cloud computing is a model for enabling ubiquitous, convenient, on-demand network access to a shared
pool of configurable computing resources (e.g., networks, servers, storage, applications, and services) that
can be rapidly provisioned and released with minimal management effort or service provider interaction
There are some major benefits in using policy managed databases (that’s my solely opinion):
- PMD instances are created/removed automatically. This means that you can add and remove nodes nodes to/from the server pools or the whole cluster, the underlying databases will be expanded or shrinked following the new topology.
- Server Pools (that are the base for PMDs) allow to give different priorities to different groups of servers. This means that if correctly configured, you can loose several physical nodes without impacting your most critical applications and without reconfiguring the instances.
- PMD are the base for Quality of Service management, a 11gR2 feature that does resource management cluster-wide to achieve predictable performances on critical applications/transactions. QOS is a really advanced topic so I warn you: do not use it without appropriate knowledge. Again, Trivadis has deep knowledge on it so you may want to contact us for a consulting service (and why not, perhaps I’ll try to blog about it in the future).
- RAC One Node databases (RONDs?) can work beside PMDs to avoid instance proliferation for non critical applications.
- Oracle is pushing it to achieve maximum flexibility for the Cloud, so it’s a trendy technology that’s cool to implement!
- I’ll find some other reasons, for sure! 🙂
What changes in real-life DB administration?
Well, the concept of having a relation Server -> Instance disappears, so at the very beginning you’ll have to be prepared to something dynamic (but once configured, things don’t change often).
As Martin pointed out in his blog, you’ll need to configure server pools and think about pools of resources rather than individual configuration items.
The spfile doesn’t contain any information related to specific instances, so the parameters must be database-wide.
The oratab will contain only the dbname, not the instance name, and the dbname is present in oratab disregarding if the server belongs to a serverpool or another.
Your scripts should take care of this.
Also, when connecting to your database, you should rely on services and access your database remotely rather than trying to figure out where the instances are running. But if you really need it you can get it:
An approach for the crontab: every DBA soon or late will need to schedule tasks within the crond. Since the RAC have multiple nodes, you don’t want to run the same script many times but rather choose which node will execute it.
My personal approach (every DBA has his personal preference) is to check the instance with cardinality 1 and match it with the current node. e.g.:
In the example, TST_1 is running on node1, so the first evaluation returns TRUE. The second evaluation is done after the node2, so it returns FALSE.
This trick can be used to have an identical crontab on every server and choose at the runtime if the local server is the preferred to run tasks for the specified database.
A proof of concept with Policy Managed Databases
My good colleague Jacques Kostic has given me the access to a enterprise-grade private lab so I can show you some “live operations”.
Let’s start with the actual topology: it’s an 8-node stretched RAC with ASM diskgroups with failgroups on the remote site.
This should be enough to show you some capabilities of server pools.
The Generic and Free server pools

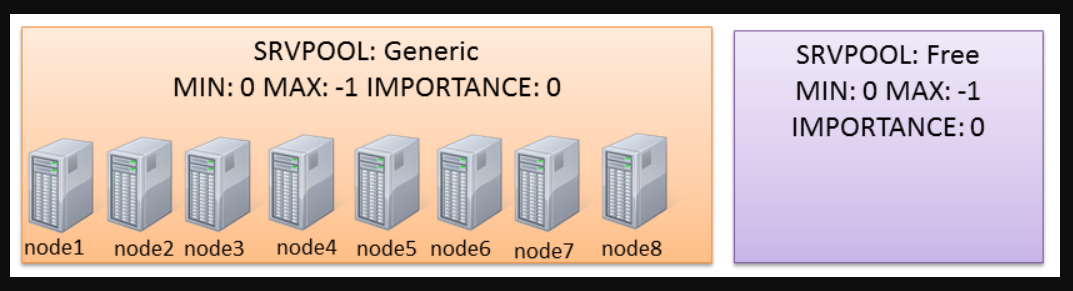

After a clean installation, you’ll end up with two default server pools:
The Generic one will contain all non-PMDs (if you use only PMDs it will be empty). The Free one will own servers that are “spare”, when all server pools have reached the maximum size thus they’re not requiring more servers.
New server pools
Actually the cluster I’m working on has two serverpools already defined (PMU and TST):
(the node assignment in the graphic is not relevant here).
They have been created with a command like this one:
“srvctl -h ” is a good starting point to have a quick reference of the syntax.
You can check the status with:
and the configuration:
Modifying the configuration of serverpools
In this scenario, PMU is too big. The sum of minumum nodes is 2+5=7 nodes, so I have only one server that can be used for another server pool without falling below the minimum number of nodes.
I want to make some room to make another server pool composed of two or three nodes, so I reduce the serverpool PMU:
Notice that PMU maxsize is still 6, so I don’t have free servers yet.
So, if I try to create another serverpool I’m warned that some resources can be taken offline:
The clusterware proposes to stop 2 instances from the db pmu on the serverpool PMU because it can reduce from 6 to 3, but I have to confirm the operation with the flag -f.
Modifying the serverpool layout can take time if resources have to be started/stopped.
My new serverpool is finally composed by two nodes only, because I’ve set an importance of 1 (PMU wins as it has an importance of 3).
Inviting RAC One Node databases to the party
Now that I have some room on my new serverpool, I can start creating new databases.
With PMD I can add two types of databases: RAC or RACONDENODE. Depending on the choice, I’ll have a database running on ALL NODES OF THE SERVER POOL or on ONE NODE ONLY. This is a kind of limitation in my opinion, hope Oracle will improve it in the near future: would be great to specify the cardinality also at database level.
Creating a RAC One DB is as simple as selecting two radio box during in the dbca “standard” procedure:
I’ve created two new RAC One Node databases:
- DB LUDO (service PRISM :-))
- DB VICO (service CHEERS)
I’ve ended up with something like this:

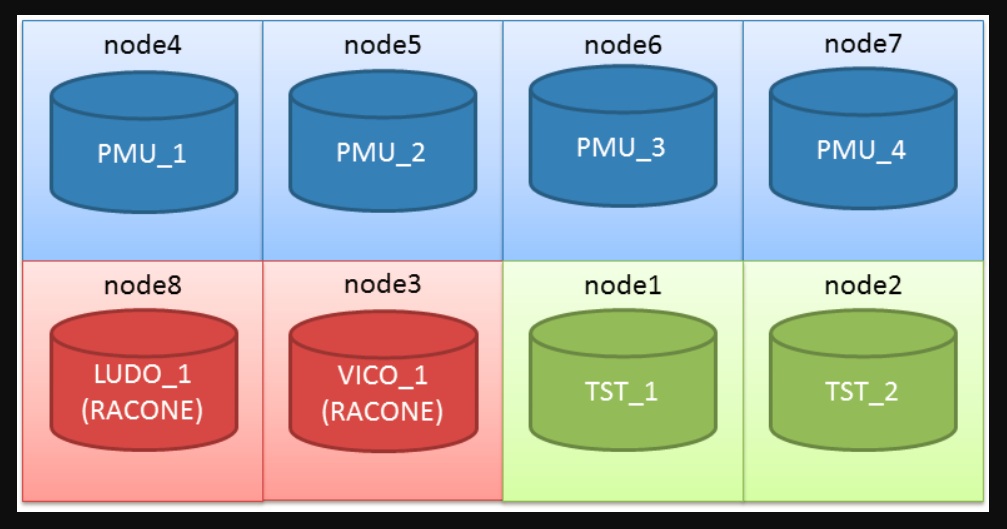

That can be represented with this picture:
RAC One Node databases can be managed as always with online relocation (it’s still called O-Motion?)
Losing the nodes
With this situation, what happens if I loose (stop) one node?
The node was belonging to the pool LUDO, however I have this situation right after:
A server has been taken from the pol PMU and given to the pool LUDO. This is because PMU was having one more server than his minimum server requirement.
Now I can loose one node at time, I’ll have the following situation:
- 1 node lost: PMU 3, TST 2, LUDO 2
- 2 nodes lost: PMU 3, TST 2, LUDO 1 (as PMU is already on min and has higher priority, LUDO is penalized because has the lowest priority)
- 3 nodes lost:PMU 3, TST 2, LUDO 0 (as LUDO has the lowest priority)
- 4 nodes lost: PMU 3, TST 1, LUDO 0
- 5 nodes lost: PMU 3, TST 0, LUDO 0
So, my hyper-super-critical application will still have three nodes to have plenty of resources to run even with a multiple physical failure, as it is the server pool with the highest priority and a minimum required server number of 3.
What I would ask to Santa if I’ll be on the Nice List (ad if Santa works at Redwood Shores)
Dear Santa, I would like:
- To create databases with node cardinality, to have for example 2 instances in a 3 nodes server pool
- Server Pools that are aware of the physical location when I use stretched clusters, so I could end up always with “at least one active instance per site”.
Think about it 😉
